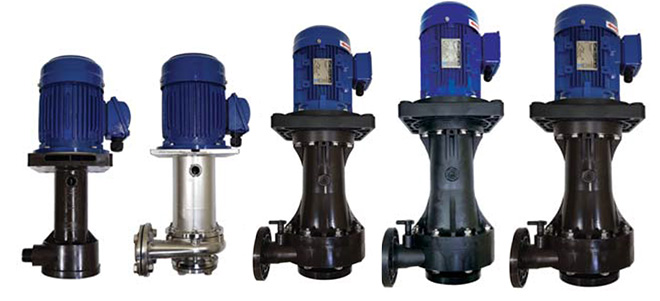

VERTICAL

블릿이미지특징
- FRPP, PVDF, SUS 재질 사용으로 각종 케미칼에 대한 내부식성과 내화학성 강화.
- 공화전 가능
- 각종 케미칼로 부터 모터 손상을 방지한 SEALLESS TYPE
- 다양한 APPLICATION
- MOTOR 용량 : 1/8HP – 15HP
vertical
블릿이미지PERFORMANCE CURVES
performance curvers
블릿이미지SPECIFICATIONS
MODEL규격비중흡·토출구경 동력(HP) 50Hz 60Hz
(mm) NO. max.HEAD max.CAPA NO. max.HEAD max.CAPA
HSV40VK-1 1.150 x 40 1a14280A13250
HSV40VK-21.150 x 40 2b18400B22320
HSV40VK-31.150 x 40 3c22450C26420
HSV50VK-31.165 x 50 3d21530D23520
HSV40VK-51.165 x 50 5e31580E36560
HSV65VK-51.180 x 65 5f 29550F29700
HSV65VK-7.51.180 x 65 7.5g 32780G36560
HSV65VK-10 1.180 x 65 10g32780H39.51100
HSV40VP-31.150 x 40 3i22400I19340
HSV50VP-31.165 x 50 3 j 19500J 32400
HSV40VP-5 1.165 x 50 5 k 19560K32500
HSV65VP-51.180 x 65 5l 28520L 25600
HSV65VP-7.5 1.180 x 65 7.5m31750M 35 750
HSV65VP-10 1.180 x 65 10m31750N 38850
블릿이미지SPECIFICATIONS
MODELSUCTION×DISCHARGE
mm×mm
max. CAPACITY
(LPM)
max. HEAD
(M)
rated CAPACITY
(LPM)
rated HEAD
(M)
OUTPUT
(Kw)
HSV-25VK-1/3 40 x 25 100101205 0.25
HSV-25VK-1/240 x 25 15011 1608 0.04
블릿이미지DEMENSIONS
MODELA BC D E F G R J I
HSV-40VK/VP-1 3504257102855040170186222260
HSV-40VK/VP-2 3504257553305040170186222260
HSV-40VK/VP-3 3504257553305040170186222260
HSV-50VK/VP-3 3504257553306550200186222260
HSV-50VK/VP-5 3504257953706550200186222260
HSV-65VK/VP-5 3504257953708065200186222260
HSV-65VK/VP-7.5 3504258654408065200186300355
HSV-65VK/VP-10 3504258654408065200186300355
